Portable Power Bank - Instagrid Go 36 LV

Portable Power Bank - Instagrid Go 36 LV hire

Quick code: 060/0111

*Please note that there is a minimum hire period of 1 week on this product*

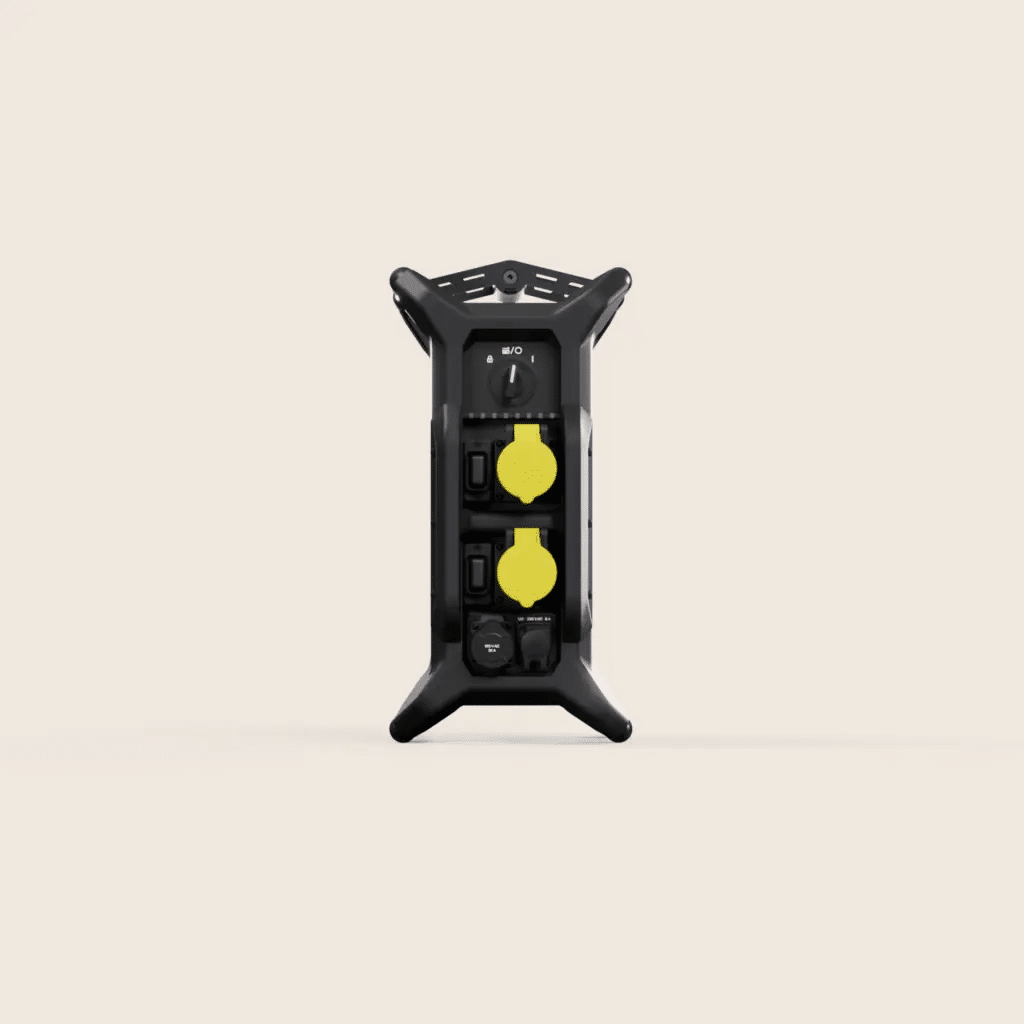

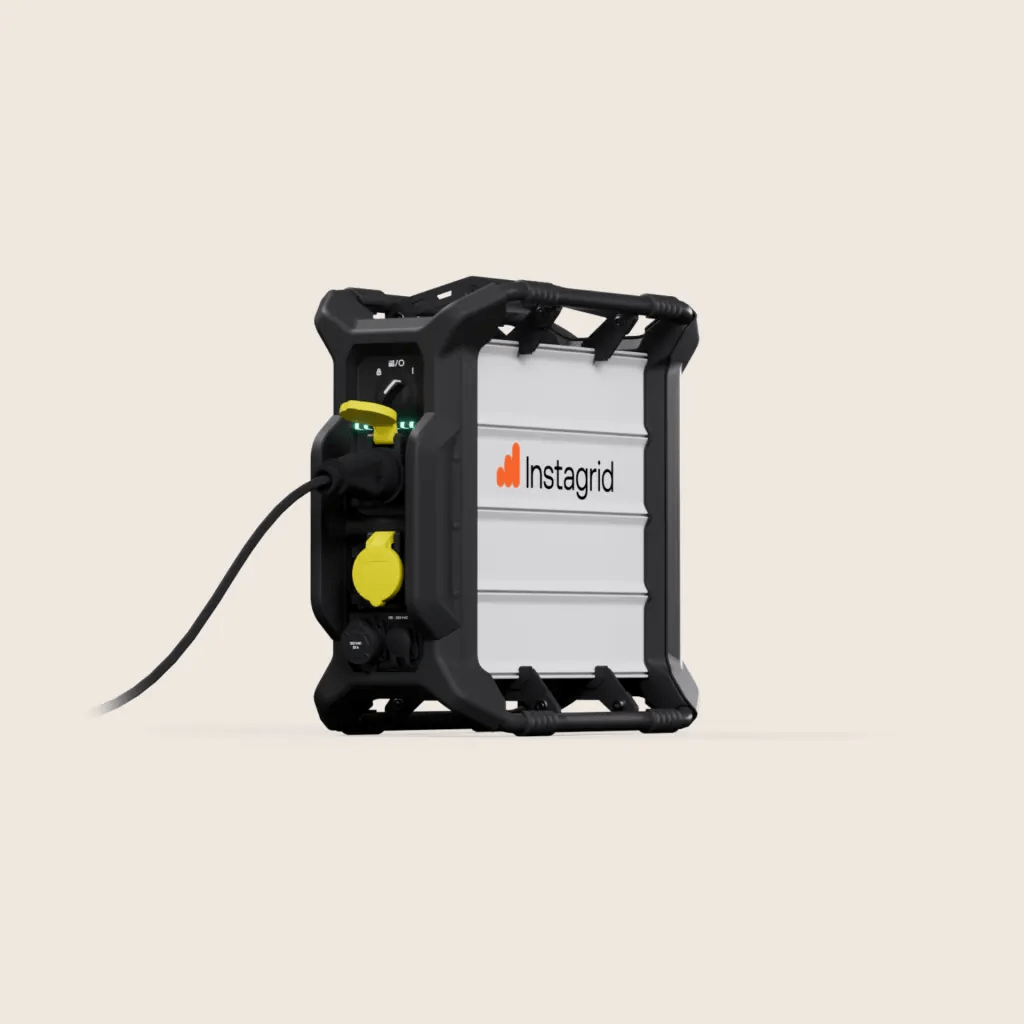

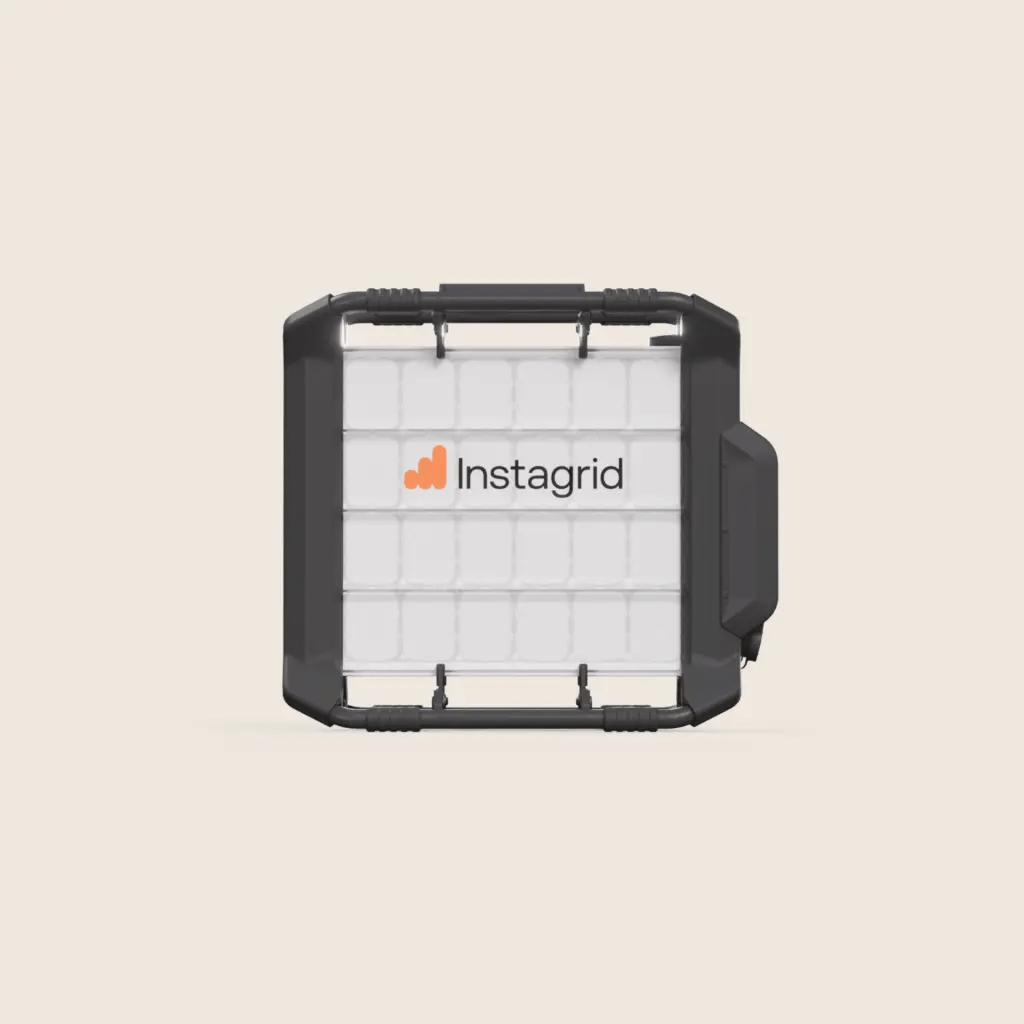

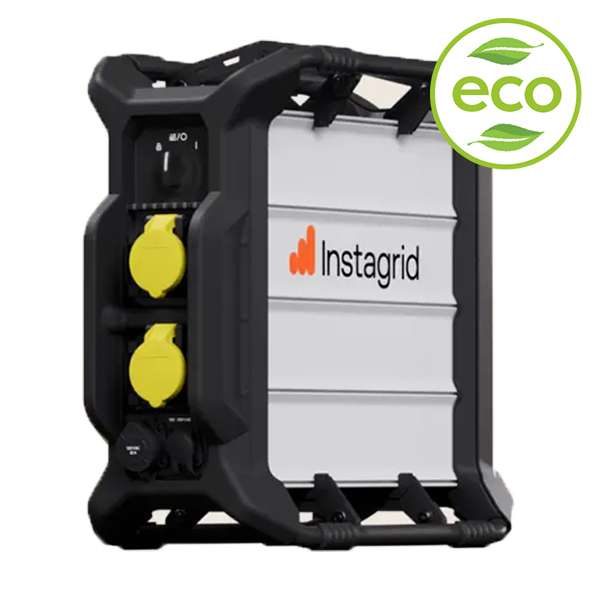

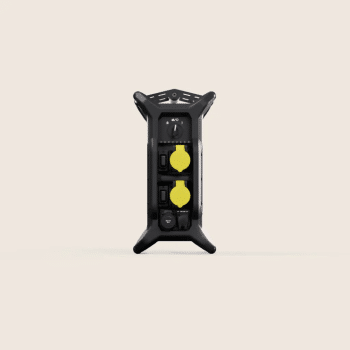

This Portable Power Bank - Instagrid Go 36 V was designed specifically for professional applications, providing a power socket without constraints wherever it is needed.

It delivers grid-like performance with a rated power output of 3,600W, a peak power output of 18,000W, and it is lightweight, robust, powerful and flexible!

Bringing electricity with zero local emissions and silent uninterrupted power on site without the limitations of conventional generators.

The power bank can be used indoors and outdoors - in all weather conditions, featuring an IP 44 rating. The fact that this is completely portable means that you won't experience trailing cables on your work site and therefore reducing trip hazards.  It is not only compact but it can also be transported in just one hand, as the unit only weighs 20kg!

And with its fast recharging from standard 16A 230V or 16A 110V supply it can be charged in under 3 hours.

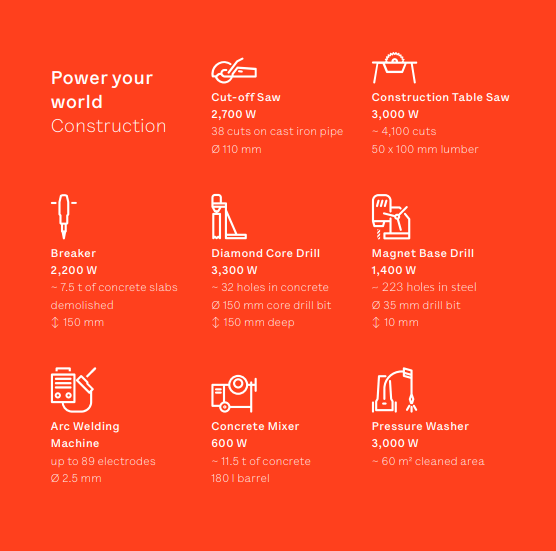

Use any AC electrical equipment with a suitable plug. Power even the most demanding tools -

Product Features:

  • Plug & Play
  • Grid-like power - equivalent to 32A / 110V construction site power
  • Rated power output - 3.6kW
  • Peak power output - 18kWp
  • Long runtime - 2.1kWh
  • Truly portable - 21kg
  • No noise, no fumes

Click to view the technical specification for the Instagrid Portable Power Bank

Click to view the manual for the Instagrid Portable Power Bank

Weekend Hire Policy:

Hire Friday after 12pm and return by Monday 10am and pay the weekend rate.

Place your hire request:

£110.00 + VAT
Calculating...

Discounted web rates: Ex VAT & Delivery

1 day
£110.00
2 days
£110.00
3 days
£110.00
4 days
£110.00
Week
£110.00
W/E
£110.00

Transport Code: 1

*Exact transport costs will be calculated with depot

Small Equipment Transport Guideline

Up to 10 miles:
£10 Each way

11-20 miles:
£16 Each way

21-30 miles:
£20 Each way

Specifications

Make/model

Instagrid Go 36 V

Output voltage

110 V AC / 50Hz

Rated output power

3,600 W (2 x 16A)

Peak power

18,000 W

Circuit breaker

32 A eFuse (tripping characteristic C) and one 16 A thermal breaker per CEE receptacle

Ambient temperature

0 degrees C to 60 degrees C

Input voltage

100 – 240 V AC / 50-60 Hz

Rated input current

6A

Rated input power

600 – 1,400 W

Charge time / 0 to 100% (230 V AC)

below 3.0h (at room temperature 25 degrees C)

Ambient charging temperature

0 degrees C to 45 degrees C

IP class

IP54

Protection class

Class II / double-insulated

Noise emission

Below 30 dB(A) / whisper-quiet (fanless0

Output Receptacle

2x CEE 3p 4h 16 A

Output receptacle (120 V AC)

Instagrid accessories outlet (e.g. with adapter to CEE 3p 4h 32 A)

Input receptacle

Neutrik powerCON TRUE1 TOP
