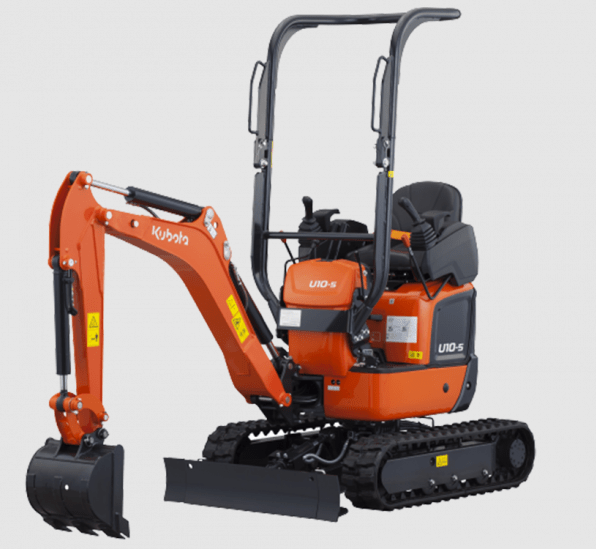

Kubota U10-5 Mini Digger (1.1t)

Kubota U10-5 Mini Digger – Ultra-Compact Power for Tight Spaces

The Kubota U10-5 is an ultra-compact, zero-tail-swing mini excavator built to deliver reliable performance in the most confined and challenging work environments. Perfect for landscaping, groundwork, utilities, drainage, footings and urban construction sites, this micro-digger combines class-leading manoeuvrability with impressive digging capability — making it an ideal choice for both trade professionals and DIY projects.

Key Features & Benefits

• Ultra-compact design: With a transport width from 750 mm up to 990 mm, the U10-5 fits easily through narrow gateways, doorways and tight alleys — giving you access where larger machines can’t.

• Zero-tail swing: Works safely and efficiently in constrained spaces without the risk of rear overhang, ideal for urban or indoor jobs.

• Powerful Stage V engine: A 10.3 PS / 7.6 kW Kubota D722 engine delivers robust digging performance while keeping fuel use and emissions low, complying with current environmental standards.

• Smooth, responsive controls: Hydraulic servo control ensures precise, smooth operation even in fine grading and digging tasks — reducing operator fatigue and boosting productivity.

• Adjustable tracks & two-speed travel: Quickly adjust the track width on the move and switch between high and low travel speeds for easier repositioning across site terrain.

• Built-in safety: Standard features include a seat-belt alarm, safety locks, LED boom lights and secure operator controls for confident operation on-site.

Performance Specs at a Glance

• Operating weight: ~1,050–1,125 kg (approx. 1.1 t)

• Max digging depth: Up to 1.8 m — perfect for trenches, drainage and foundation work.

• Max reach: Approx. 3.3 m for extended digging and loading.

• Width (min/max): 750 mm – 990 mm for ultimate access flexibility.

• Two-speed travel: Simple pedal control for efficient site mobility.

Why Hire the Kubota U10-5?

The U10-5 stands out for hire because it delivers big machine performance in a micro package — easy to transport, economical to operate, and versatile enough for a wide range of tasks. Its combination of compact footprint, reliable power, and smooth hydraulics means you can complete trenches, excavations, landscaping and groundwork faster and more precisely — reducing labour time and hire costs.

Whether you’re tackling residential groundwork, commercial site prep, or garden landscaping, the U10-5 is a smart choice for projects where space, ease of use and reliability matter.

Click here to view the product information for the Kubota U10-5 model

*Please note that a different make or model may be supplied, dependant on availability*
