Battery Powered Vibrating Plate

Battery Powered Vibrating Plate hire

Quick code: 046/0021

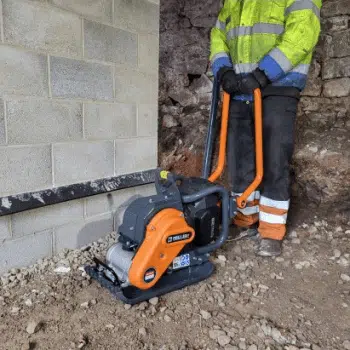

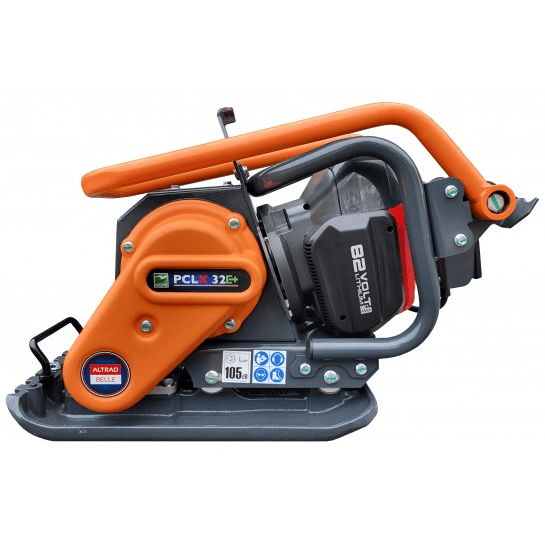

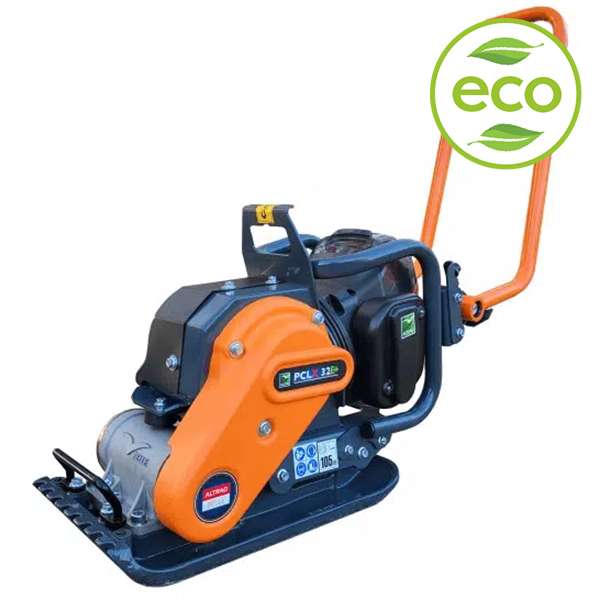

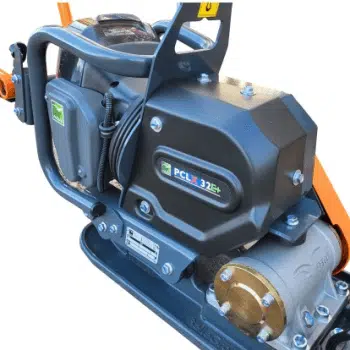

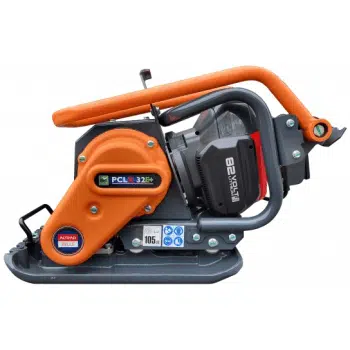

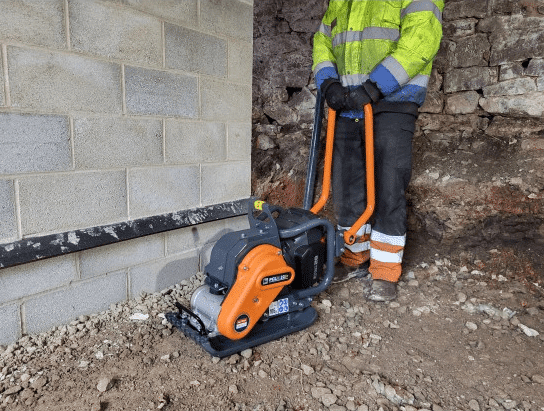

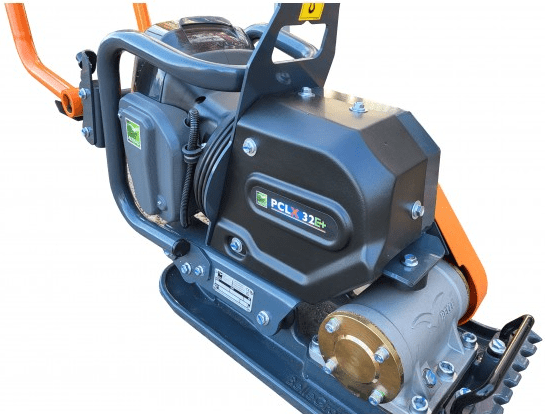

The Battery Powered Vibrating Plate is a high performance battery-powered, lightweight plate compactor designed for professional use. Featuring a 12" / 320mm plate and the emission free 82v Li-ion battery powered motor is ideal for use indoors & in poorly ventilated areas such as basements and tunnels. It can also be operated in environmentally sensitive areas, such as green spaces, nature reserves, national parks, rural railway cuttings and emission controlled urban areas, without any exhaust emissions.

It features low HAV values designed for longer safe usage times and is equally as performance driven as the equivalent petrol powered counterpart, but offers an eco-friendly alternative to reduce environmental impact! Avoiding problems with modern fuels - no blocked carburettors. It's also easy to operate and control and the baseplate does not dig in when dragged backwards or turned. No routine power unit maintenance eliminates servicing or costly downtime due to repairs.

Product supplied with 2 batteries for ease of use.

Product Highlights:

  • Engineered to be robust and durable for heavy contractor usage.
  • Lightweight yet durable for easy transport - fits in a standard car boot when the handle is folded.
  • Low Hand-Arm Vibration
  • High performance 13kN vibration unit gives excellent compaction force and travel speeds.
  • Cordless design gives added operational flexibility.

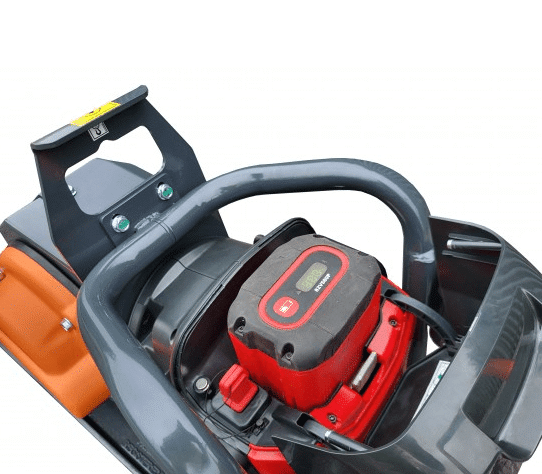

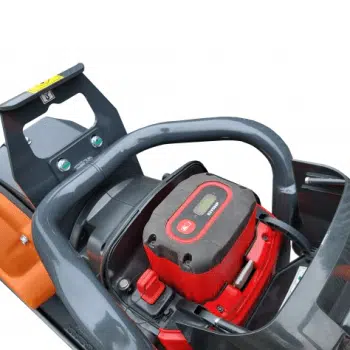

  • Quick release / connect 82v battery with digital power level display.
  • Baseplate designed for optimised speed and manoeuvrability.
  • Fitted with manual handling points.

Click here to view the operators manual for the Altrad Belle PCLX 32E+

Click here to view the product information

Weekend Hire Policy:

Hire Friday after 12pm and return by Monday 10am and pay the weekend rate.

Place your hire request:

£85.80 + VAT
Calculating...

Discounted web rates: Ex VAT & Delivery

1 day
£85.80
2 days
£114.40
3 days
£143.00
4 days
£143.00
Week
£143.00
W/E
£100.10

Transport Code: 1

*Exact transport costs will be calculated with depot

Small Equipment Transport Guideline

Up to 10 miles:
£10 Each way

11-20 miles:
£16 Each way

21-30 miles:
£20 Each way

Specifications

Make / model

Altrad Belle PCLX 32E+

Motor Power

2.0Hp / 1.5kW

Motor Type

Battery Brushless

Plate Width

320mm (12")

Operating Height

500mm

Operating Length

1060mm

Storage Length

780mm

Weight (without battery)

57kg

Static pressure

397kg/m2

Centrifugal Force

13kN

Max. Travel Speed

20m/sec

Frequency

101Hz

Vibration Level

<2.5ms2

Sound Power Level

105dB(A)
