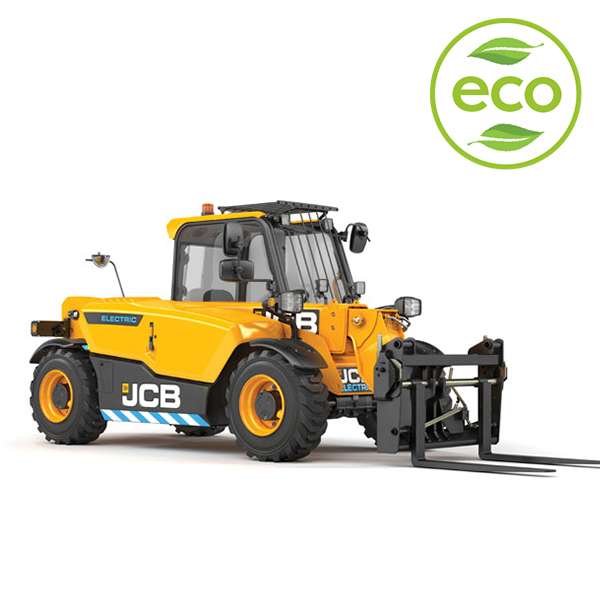

6m Electric Telehandler (JCB 525-60E)

6m Electric Telehandler (JCB 525-60E) hire

Quick code: 052/0300

The 525-60E compact telehandler is part of JCB’s 100% electric E-TECH range, with zero emissions, less noise and zero compromise on performance. Get the same high performance as a conventional machine with powerful lithium-ion technology.

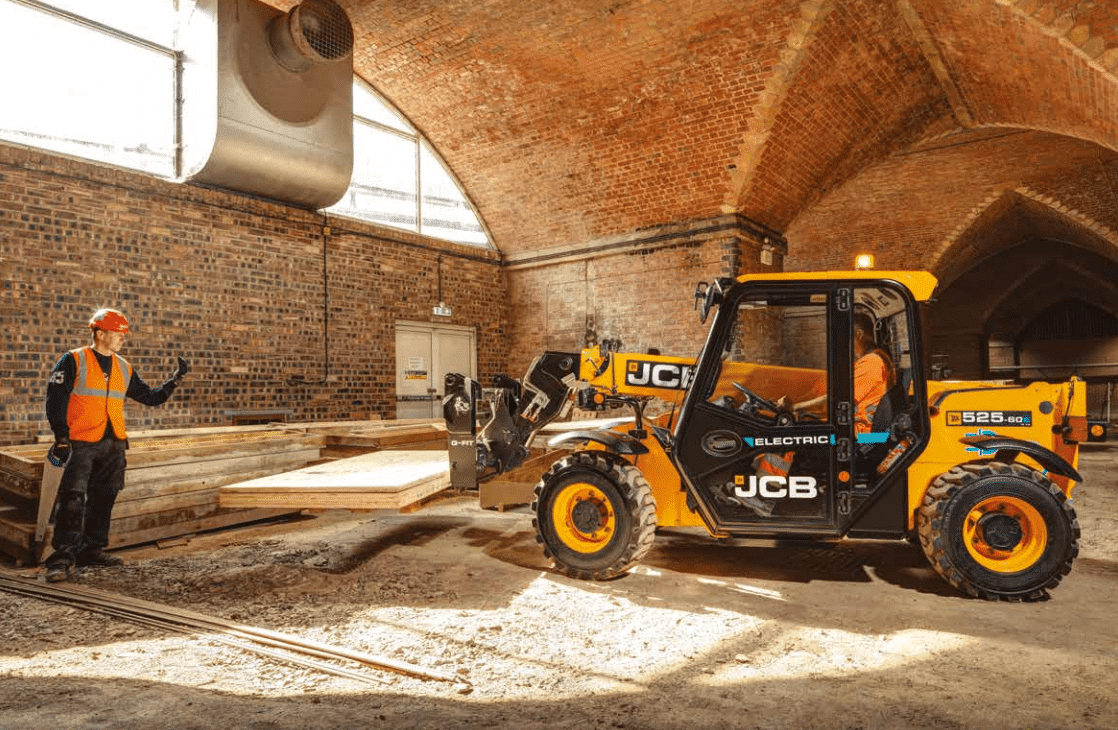

This machine is ideal for urban areas, indoors and working out of hours as well as operations in sensitive areas due to its low noise levels.

A 24kWh battery powers the machine for a full day’s work (dependant on ambient temperature and working duty cycle).

Offering total peace of mind for working safely and efficiently.

Product Features:

  • Battery capacity: 96V 24kWh
  • Zero emissions
  • Lithium-ion technology
  • Low noise
  • Safer working - no trailing tethers

icon images

Click to view the specification for the JCB 525-60E Electric Telehandler model

View our range of Telehandlers for Hire

Weekend Hire Policy:

Hire Friday after 12pm and return by Monday 10am and pay the weekend rate.

Place your hire request:

POA + VAT
Calculating...

Transport Code: 8

*Exact transport costs will be calculated with depot

Price on Application

Up to 10 miles:
POA Each way

11-20 miles:
POA Each way

21-30 miles:
POA Each way

Specifications

Power Source

Lithium-ion 96V 24kWh batteries

Charger

On-board, allowing direct connection to AC mains power supply.

Charging cable plug type

16A 230V (blue)

Max. Lifting Capacity

2500kg (To full height – 2000kg / to full reach – 720kg)

Max. Lift Height

6m

Reach at max. lift height

-0.15m

Maximum forward reach (to front of carriage)

3.5m

Outside Turning Radius (over tyres)

3.7m

Overall Height

1.89m

Overall Width (over tyres)

1.84m

Max. Drive Speed

Forward / reverse – 15 km/h

Hydraulic Oil Capacity

45L

Whole body vibration (m/s²

1.24 (ISO 2631-1:1997 normalised to an 8h reference period and based upon a
test cycle defined in SAE J1166)

Hand-arm vibration (m/s²)

1.27 (ISO 5349-2:2001 dynamic test conditions)

Weight

5145kg
