25m Tracked Spider Lift

25m Tracked Spider Lift hire

Quick code: XRH/0000

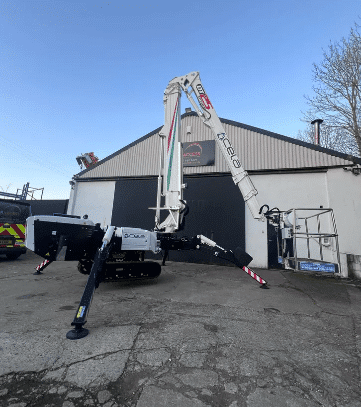

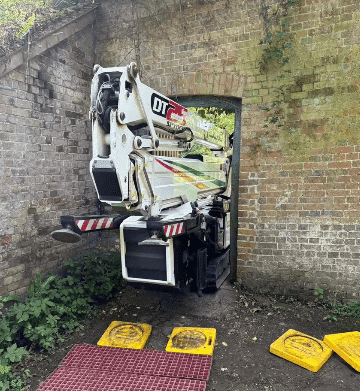

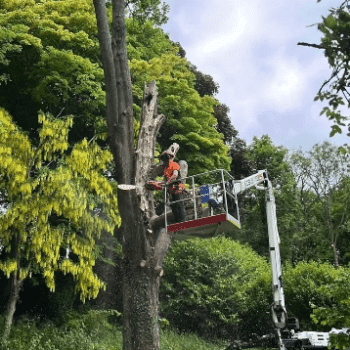

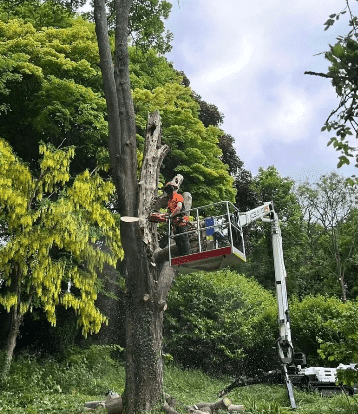

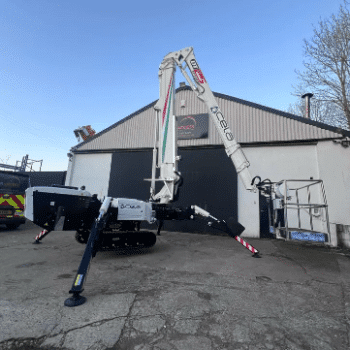

The 25m Tracked Spider Lift is a truly versatile boom lift, ideal for accessing a wide variety of work spaces from narrow restricted indoor premises to forestry sites using outriggers that adjust to enable a safe sturdy and even working platform in the most challenging terrain. This model is one of the most compact in its class and is able to pass through narrow doorways.

Reaching a working height of 25m, the model featured offers a double telescopic (DT) boom, which offers superior reach and precision. It has versatile basket options that can transform into a crane-like machine, equipped with a certified hoist hook and winch attachments. It also has a 360-degree basket rotation, allowing you to gain unprecedented access to your work area. This particular model allows you to work below ground level reaching -5m.

This Spider Boom offers a flexible productive way to reach jobs at height safely and efficiently saving you both time and money.

We can source models in various power options to suit your requirements -

Diesel / Hybrid / Electric and more, please enquire to discuss your preference - Contact us

Product Features:

  • Working Height of 25m
  • Outreach of 12m
  • SWL of 230kg
  • 360-degree basket rotations
  • Fully mobile, compact and lightweight

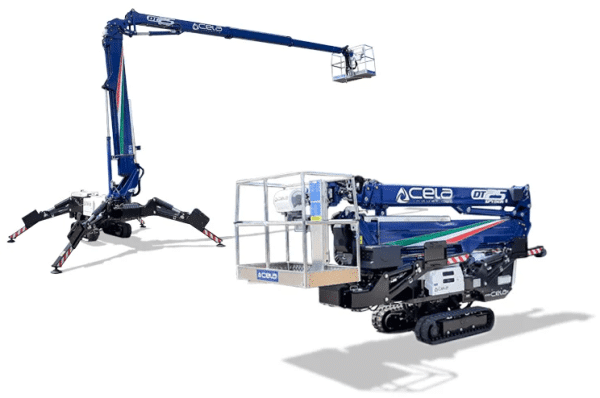

View the specifications for the Cela DT25 - Spyder Platform

**Please note that model shown is for display purposes only and depending on your specification requirements an alternative make/model may be offered to you**

Weekend Hire Policy:

Hire Friday after 12pm and return by Monday 10am and pay the weekend rate.

Place your hire request:

POA + VAT
Calculating...

Transport Code: 8

*Exact transport costs will be calculated with depot

Price on Application

Up to 10 miles:
POA Each way

11-20 miles:
POA Each way

21-30 miles:
POA Each way

Specifications

IPAF Category

IPAF 1b

Platform Width

Narrow

Max. working height

25m

Negative work

-5m

Up and over clearance

14m

Horizontal outreach

12m

Basket capacity

230kg

Stabilization

Auto

Hook capacity

260kg

Turret rotation

720-degree

Basket rotation

90-degree + 90-degree

Platform controls

Electronic + radio

Self-closing

Auto

Remote monitoring

Yes

Basket capacity during material handling

200kg

Maximum weight

2950kg
