Electric Pallet Stacker 1.2T

Electric Pallet Stacker 1.2T hire

Quick code: 010/0101

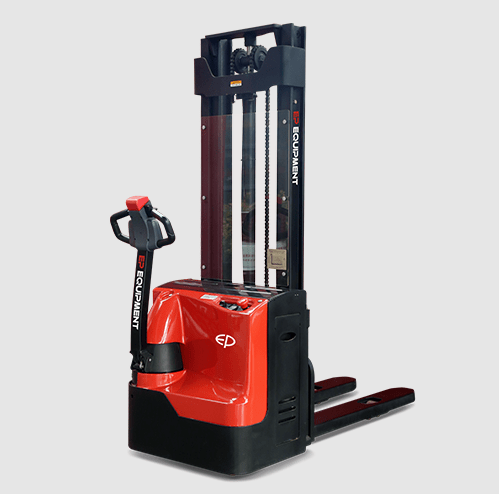

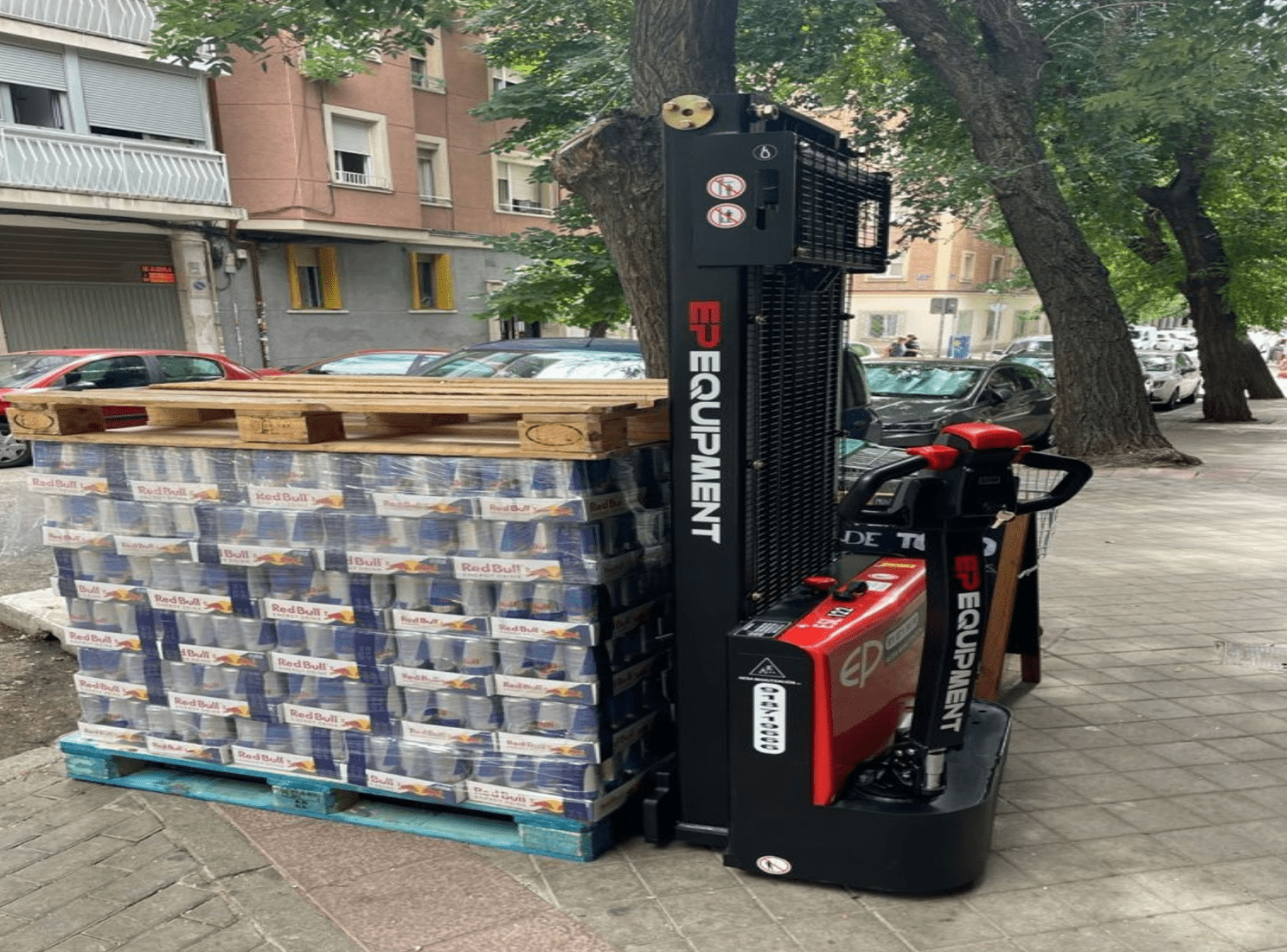

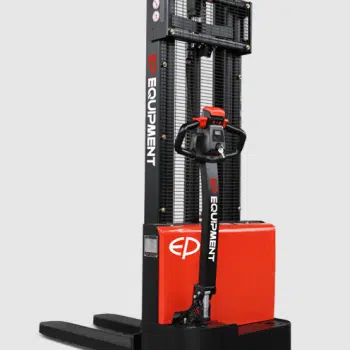

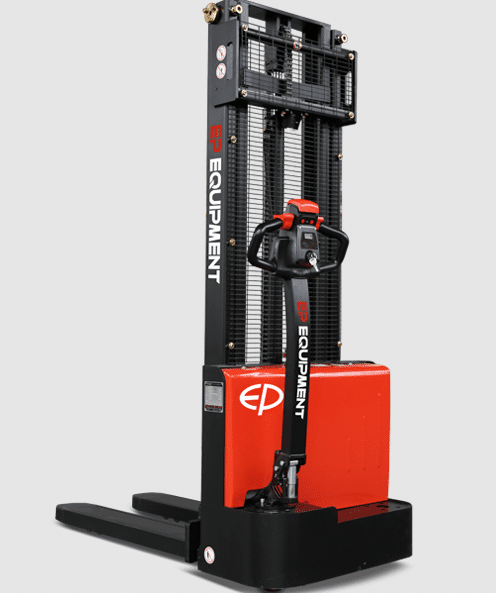

The Electric Pedestrian Stacker (1.2T) from EP Equipment is powered by a 24V/100Ah Li-ion battery. Designed with a high-strength chassis and a rigid mast to enhance operational stability. The ESL122 offers efficient and effective vertical stacking capabilities, making it the perfect piece of kit for tight spaces while ensuring comfortable manoeuvrability.

The 1200kg pedestrian stacker is a compact duplex mast stacker and ideal for light duty applications, features a simple design and a turtle button to operate in narrow spaces as well as fast charging through the integrated charger.

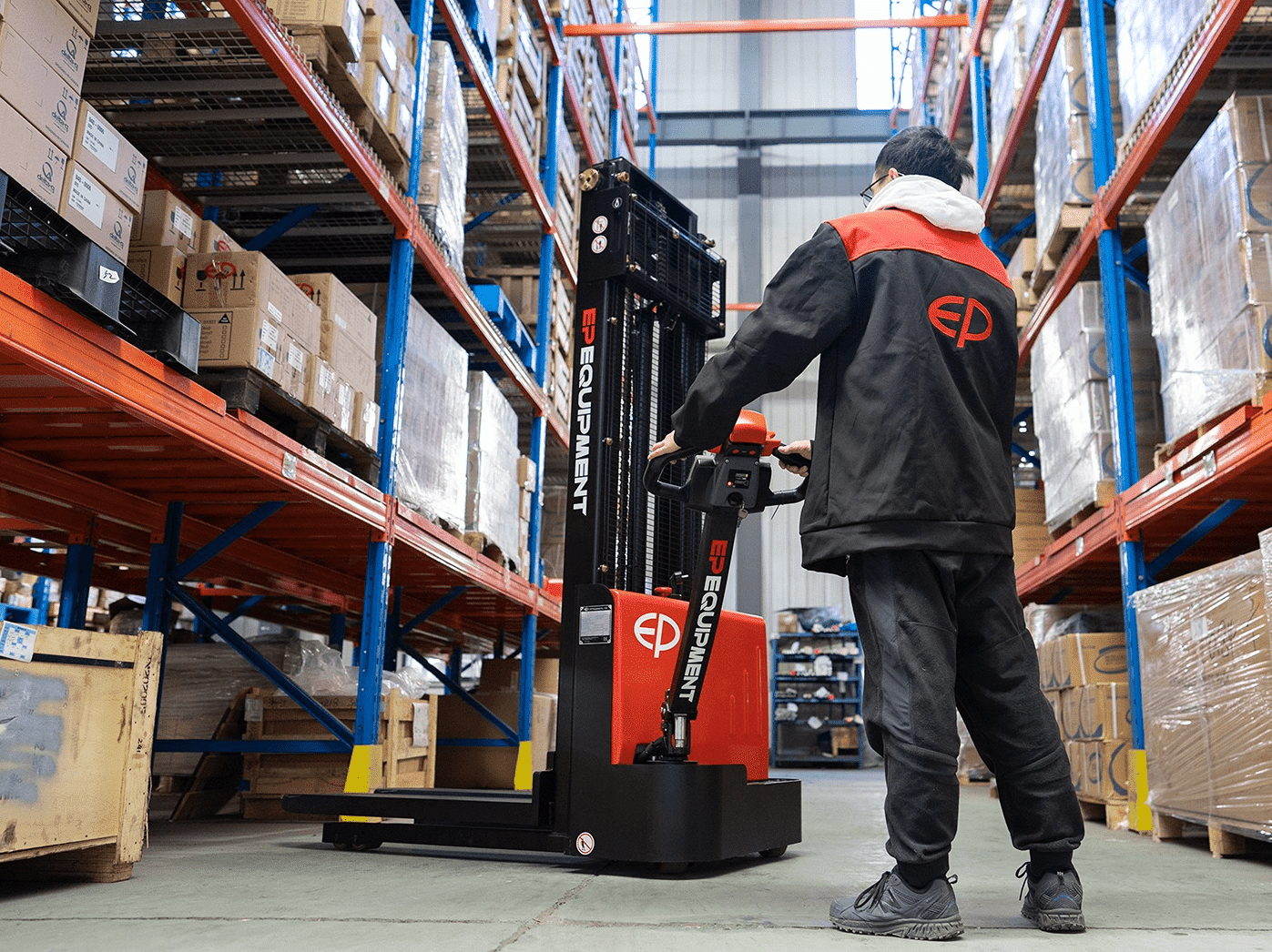

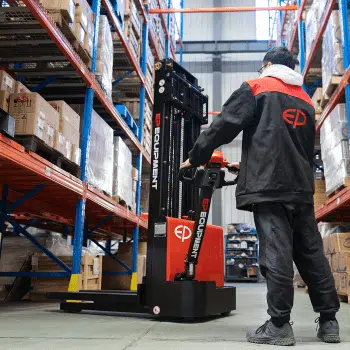

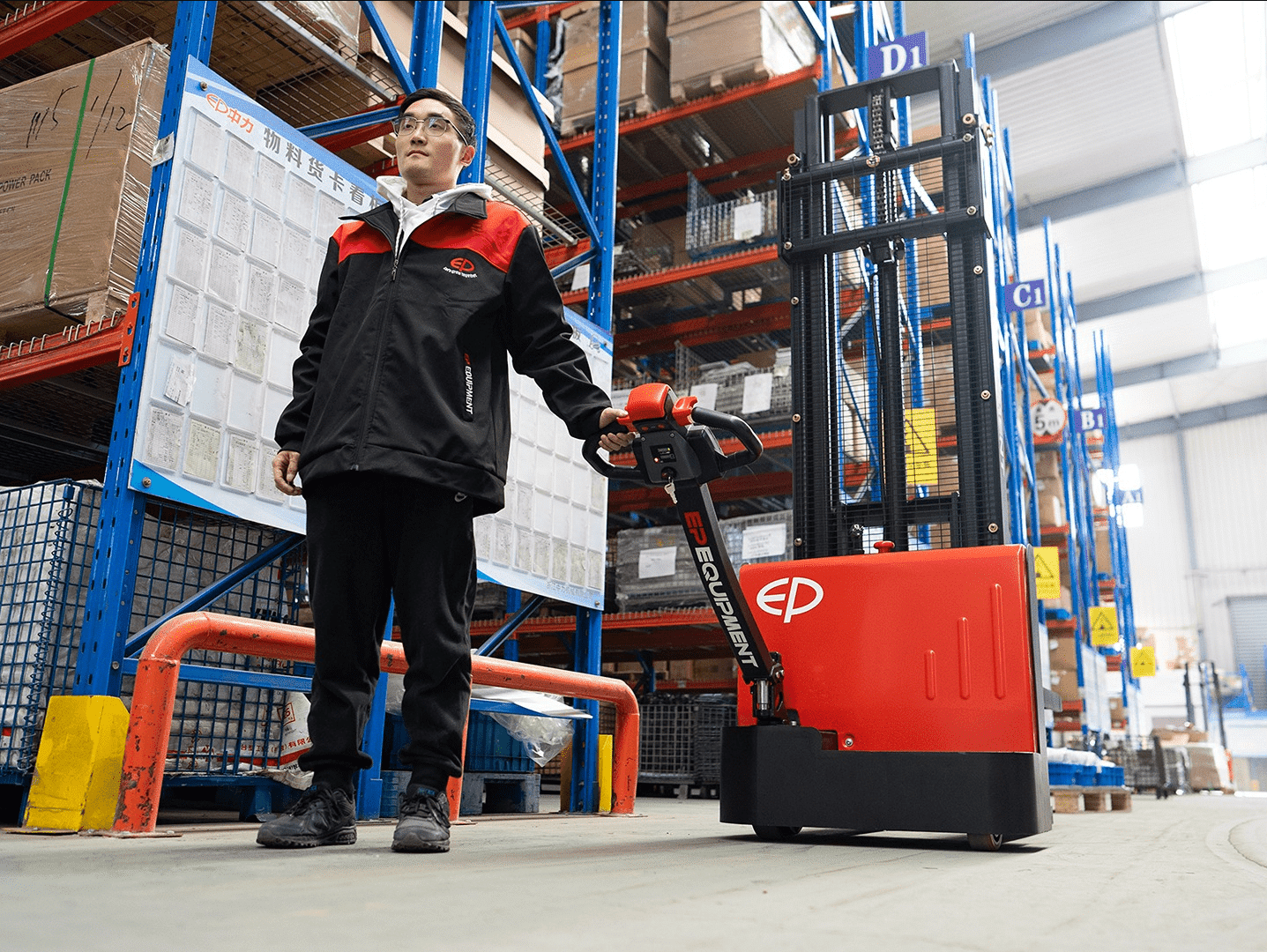

Operating the pallet stacker is easy via the extra-long and offset tiller with the crawl speed button which provides better visibility and manoeuvrability when operating in tight spaces.

Please note that this model features a lift height of 2513mm - height of mast lowered is 1817mm and mast extended is 3032mm.

Product Features:

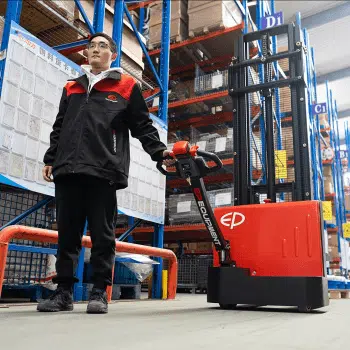

    • Versatile Use: Ideal for small to medium warehouses and manufacturing facilities.
    • Confined Spaces: With a compact size, this stacker is perfect for medium-height rack systems and narrow aisles.

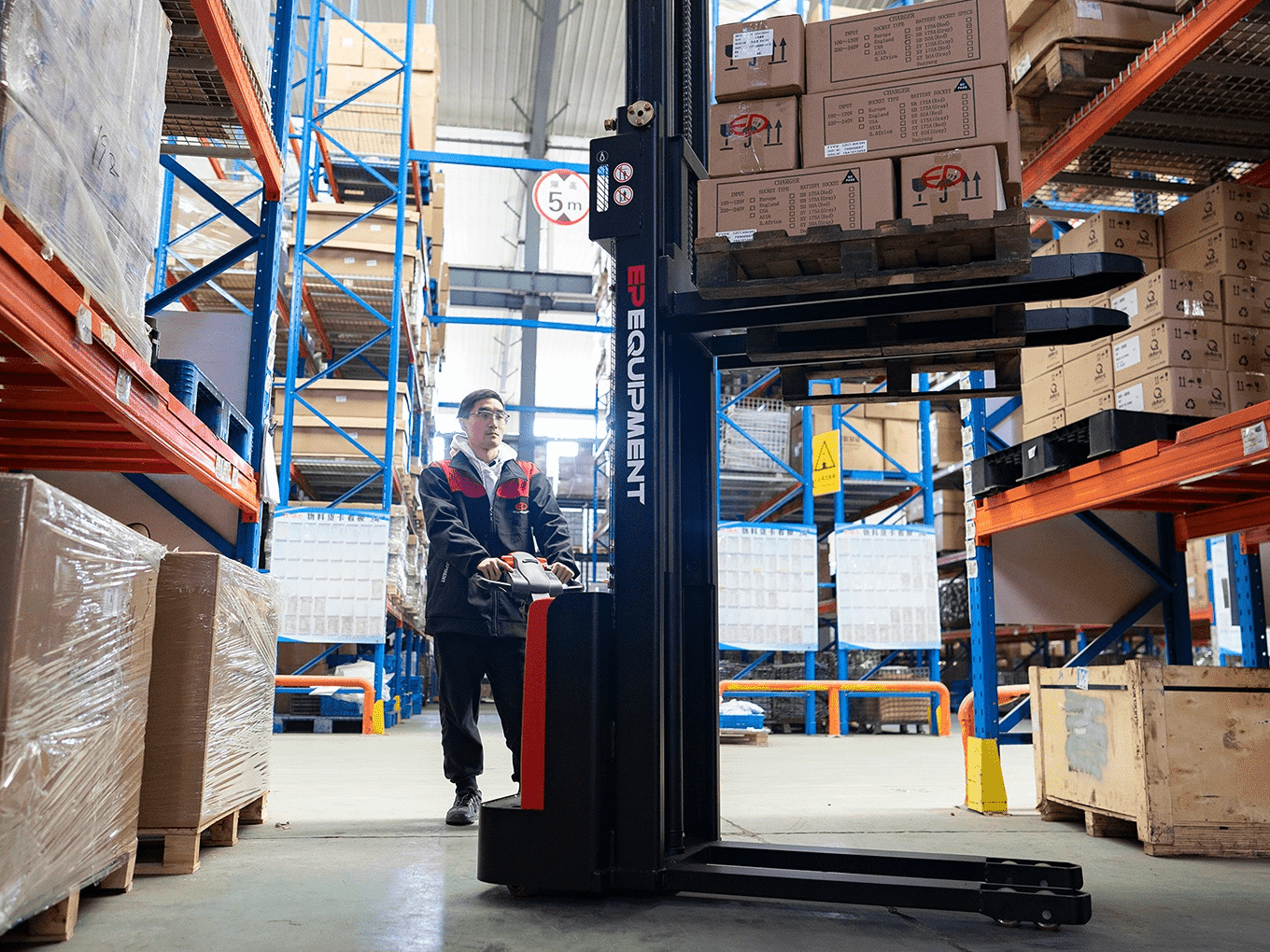

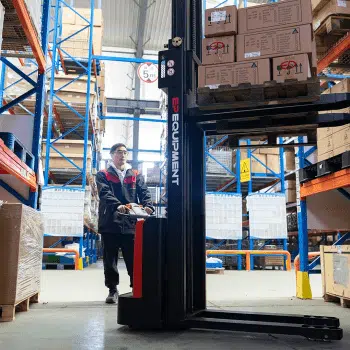

    • Vertical Stacking: With a lifting height of 3615mm, this stacker is also great for vertical stacking tasks.
    • High Stability: Features a robust chassis and mast design for increased stability during operations.

For more information click to view product datasheet

Weekend Hire Policy:

Hire Friday after 12pm and return by Monday 10am and pay the weekend rate.

Place your hire request:

£179.40 + VAT
Calculating...

Discounted web rates: Ex VAT & Delivery

1 day
£179.40
2 days
£239.20
3 days
£299.00
4 days
£299.00
Week
£299.00
W/E
£209.30

Transport Code: 3

*Exact transport costs will be calculated with depot

Small Plant Transport Guideline

Up to 10 miles:
£20 Each way

11-20 miles:
£35 Each way

21-30 miles:
£40 Each way

Specifications

Make / model

EP Equipment ESL122

Drive

Electric

Load capacity

1200kg

Service weight

56kg

Retracted mast height

1817mm

Extended mast height

3032mm

Lift height

2513mm

Length to face of forks

565mm

Overall width

792mm

Fork dimensions (s/e/l)

60/170/1150mm

Turning radius (Wa)

1464mm

Max. gradeability, laden/unladen

3/10%

Travel speed, laden/unladen

4.2/4,5 km/h

Lifting speed, laden/unladen

0.09/0.13 m/s

Lowering speed, laden/unladen

0.10/0.085 m/s

Battery

Li-ion 24V/100AH

On-board charger

Standard

Lifting height

3615mm

Application

Ergonomic lifting

Controller

Curtis DC
