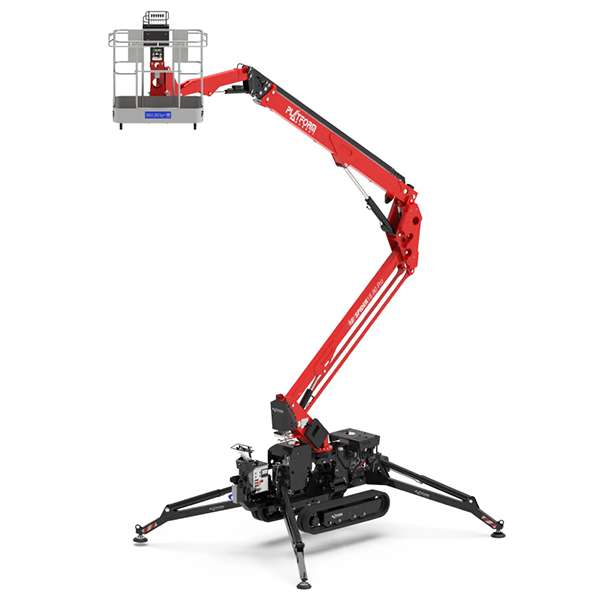

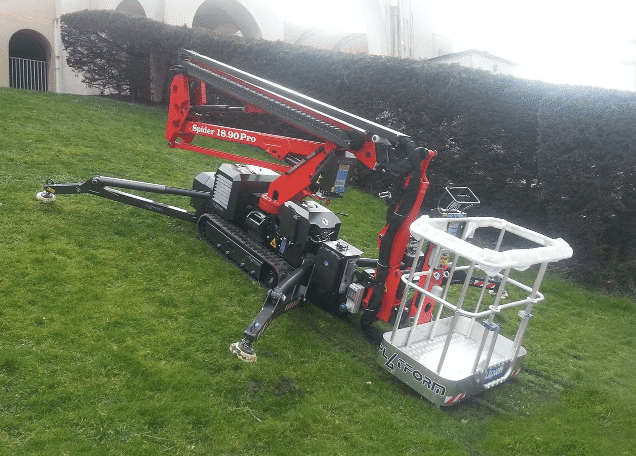

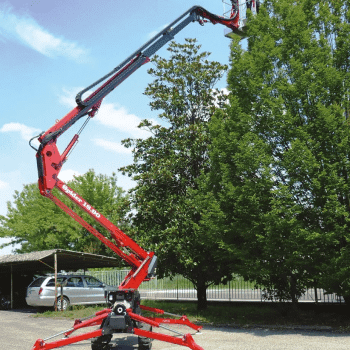

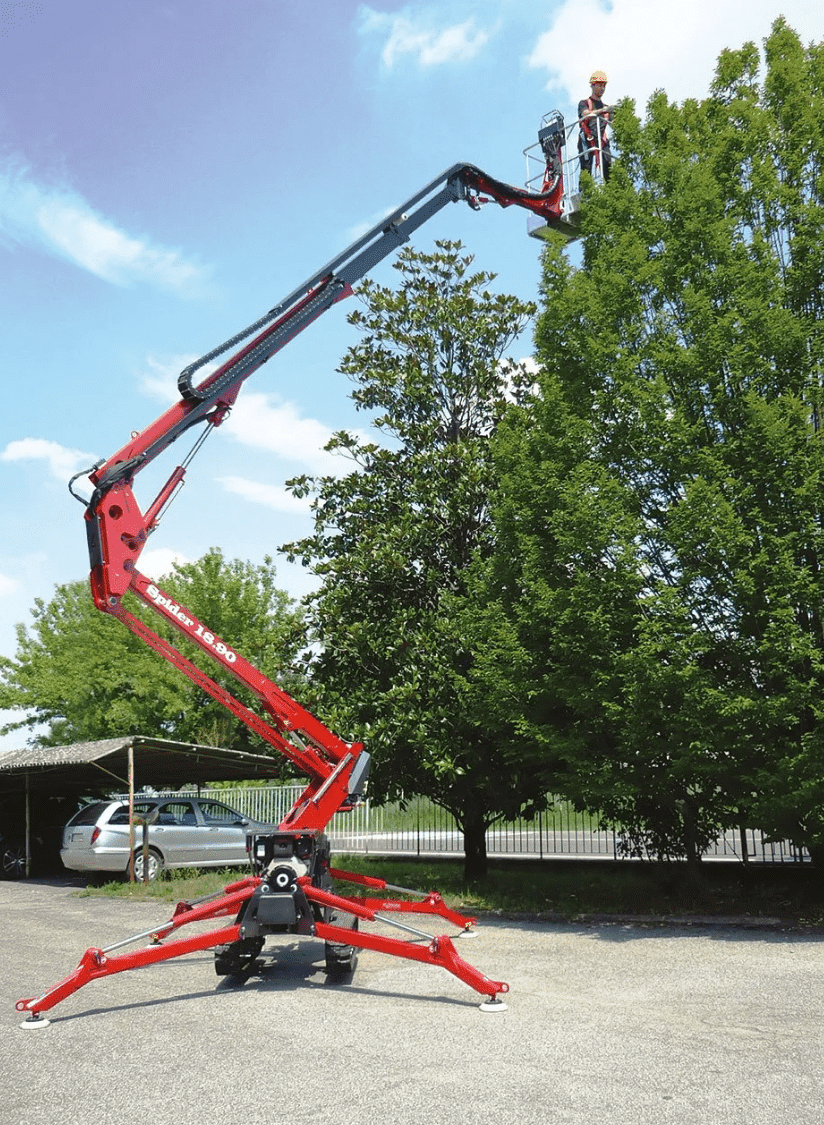

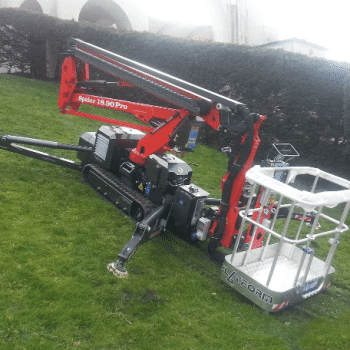

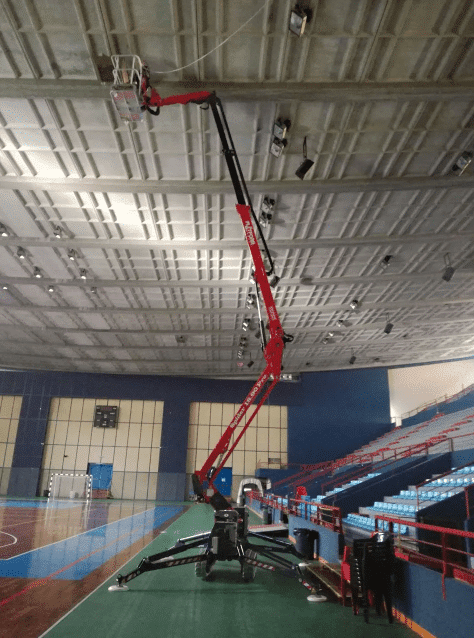

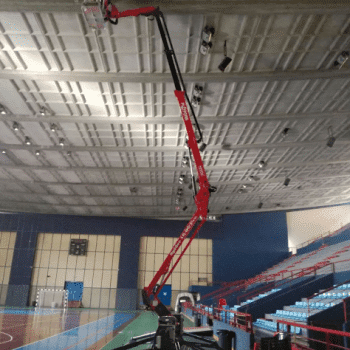

18m Tracked Spider Lift in action
Specifications
| IPAF Category | IPAF 1b |
|---|---|
| Working Height | 17.60m |
| Max. side outreach | 9.20m |
| Basket rotation angle | 70 + 70 |
| Max. basket capacity (2 persons) | 200kg |
| Basket size (standard version) | 1.30m x 0.70m |
| Length in stowed position / with basket detached | 5.0m / 4.36m |
| Min. width in stowed position | 780mm |
| Min. height in stowed position | 1950mm |
| Stabilization footprint | 3.0m x 3.63m |
| Max. gradeability | 16 degrees (29%) |
| Max drive speed (slow/fast) | Max. speed Diesel engine – 1.5km/h / 2.5km/h |
| Machine weight | Diesel – 2350kg / Electric 2500kg |
| Power | Various power options available – please enquire |
