Weekend Hire Policy:
Hire Friday after 12pm and return by Monday 10am and pay the weekend rate.
Place your hire request:
Transport Code: 6
*Exact transport costs will be calculated with depot
Large Access Transport Guideline
Up to 10 miles:
£85 Each way
11-20 miles:
£150 Each way
21-30 miles:
£170 Each way

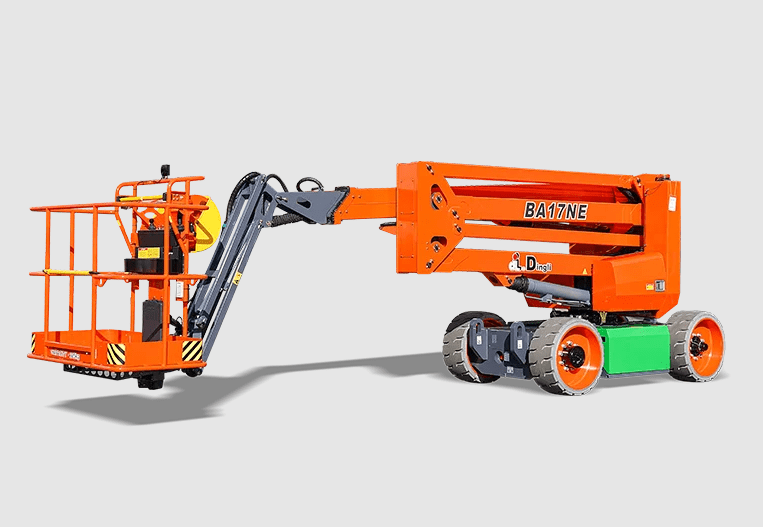

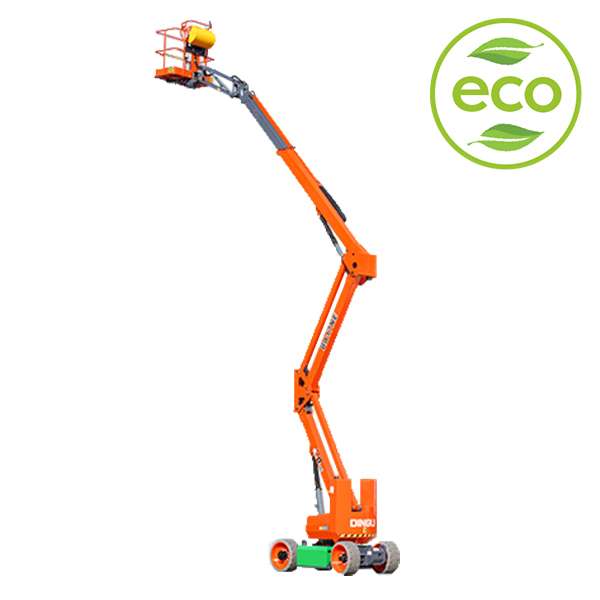

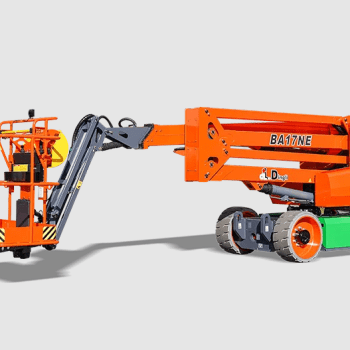

17m Articulated Boom - Dingli BA17NE in action
Specifications
IPAF Category | IPAF 3b |
---|---|
Max. working height | 17m |
Max. platform height | 15m |

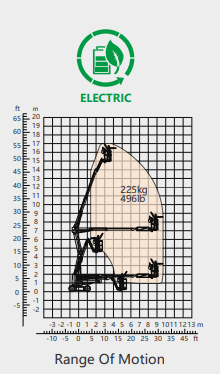

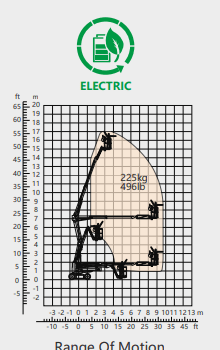

Max. operating range | 9.7m |
Max. platform range | 9.1m |
Max. up and over clearance | 7m |
Platform size (L x W) | 1.45m x 0.76m |
Flatbed transport dimensions (L x W x H) | 5.06m x 1.5m x 2.06m |
Turntable swing | 0m |
SWL (Safe Working Load) | 227kg |
Max. occupants | 2 |
Platform rotation | 180-degrees |
Travel speed (stowed) | >6.0km/h |
Travel speed (raised) | >1.1km/h |
Gradeability | 25% |
Overall weight | 7950kg |
Power | Lead-acid maintenance-free battery – 48V/300Ah |
Charger | 48V/35A |
Driving motor | 2x32VAC/3.3kW |
Lifting motor | 48V/3.8kW |
Hydraulic tank | 40L |
